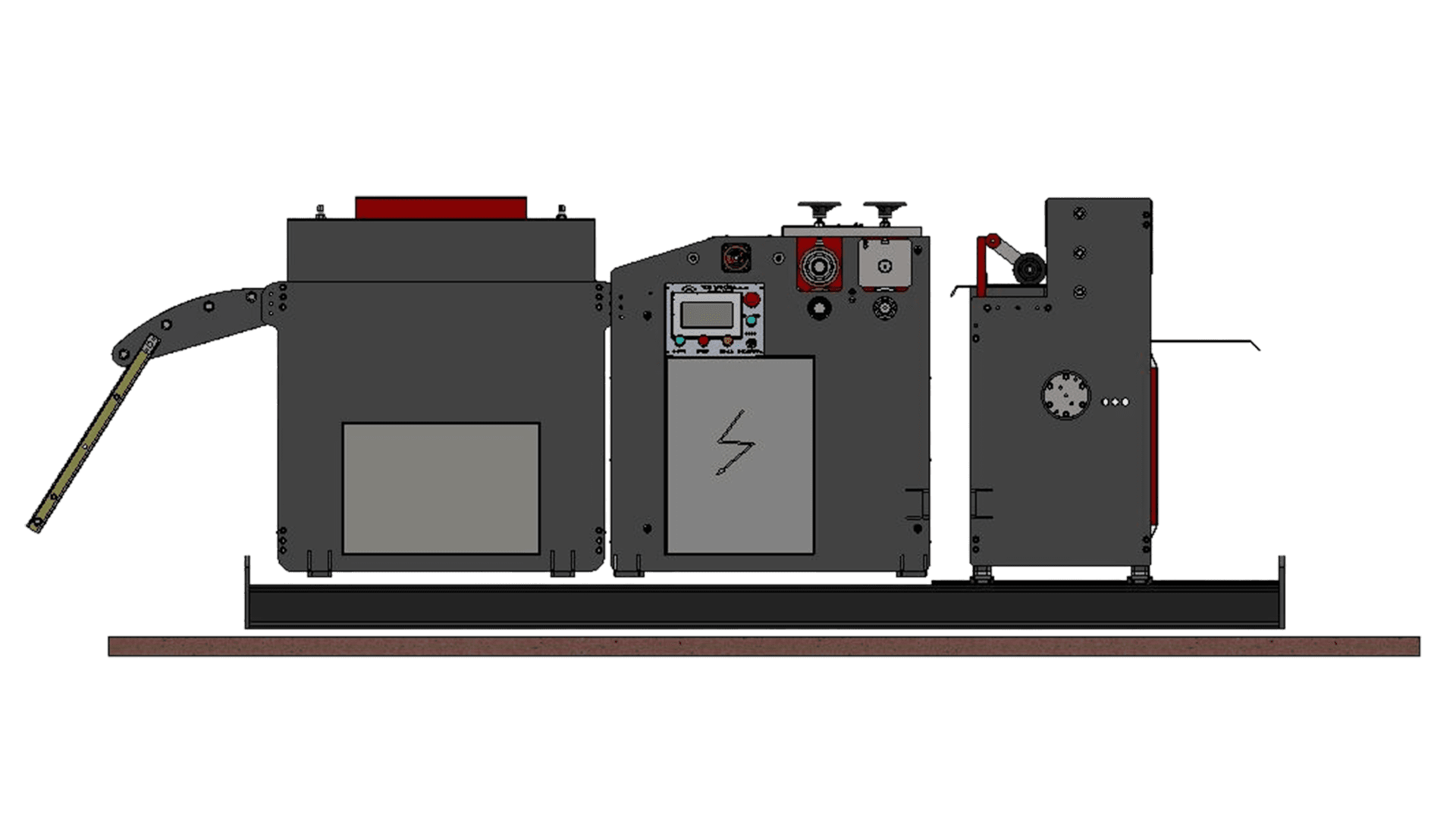

Expanded Metal Slitting and Sizing Machines

Expanded Metal Slitting and Sizing Machines - Product Description

Industrial systems specially designed for precise and repeatable slitting and sizing of expanded metal products

Our machines are designed according to maximum efficiency, durability, OHS (occupational health and safety), and security values, adhering to engineering disciplines. The body of our machines is produced as steel construction and is welded by certified welders and subjected to welding tests. Raw materials are selected from certified products in accordance with Turkish and European standards. The necessary elements of our machines undergo surface hardening heat treatment and grinding processes in accordance with standards. We also provide custom designs by offering engineering solutions in line with customer requests.

Key Features

• Capacity to produce with both plate and roll strip integration
• Use of high-quality electronic components for optimal performance
• Easy control capability with a single operator
• Ability to process DKP, HRP, aluminum, and stainless steel materials
• Ability to adjust production quantity and stroke parameters from the PLC control screen
• Fast operating capacity adjusted according to material and mold requirements
• Cylindrical cutter systems specially designed for precise slitting
• Cutting blade technology with high durability for sizing
• Ability to adapt to different materials with manually adjustable roller cutter system

Available Models

• TSD-75 Expanded Metal Slitting and Sizing Machine

  Compact slitting machine for thin expanded metal processing up to 0.80 mm

  Technical Specifications

  Material Cross-section	0.20 mm - 0.80 mm (Expanded Metal)
  Sheet Metal	DKP-Galvanized-Aluminum
  Power	380 V
  Roller Cutter (Quantity) Max	5 pieces + 5 pieces
  Roller Cutter (Material)	4140 - 58-60 HRC
  Roller Cutter Settings	Manual
  Sizing Blade and Cutter Settings	2379 (56-60 HRC)
  Automation	PLC (7' Touch Screen) - DELTA
  Motor (Slitting)	4 kW Motor - Inverter - Reducer - GAMAK
  Motor (Sizing)	2.2 kW Motor - Inverter - Reducer - GAMAK
  Packaging Dimensions (Slitting)	≈ 2650 mm x 1500 x 1800 mm
  Packaging Dimensions (Sizing)	≈ 2650 mm x 1125 x 1800 mm

• TSD-1000 Expanded Metal Slitting and Sizing Machine

  Medium-sized slitting machine with increased capacity for thin expanded metal

  Technical Specifications

  Material Cross-section	0.20 mm - 0.80 mm (Expanded Metal)
  Sheet Metal	DKP-Galvanized-Aluminum
  Power	380 V
  Roller Cutter (Quantity) Max	8 pieces + 8 pieces
  Roller Cutter (Material)	4140 - 58-60 HRC
  Roller Cutter Settings	Manual
  Sizing Blade and Cutter Settings	2379 (56-60 HRC)
  Automation	PLC (7' Touch Screen) - DELTA
  Motor (Slitting)	5.5 kW Motor - Inverter - Reducer - GAMAK
  Motor (Sizing)	4 kW Motor - Inverter - Reducer - GAMAK
  Packaging Dimensions (Slitting)	≈ 2650 mm x 1500 x 1800 mm
  Packaging Dimensions (Sizing)	≈ 2650 mm x 1125 x 1800 mm

• TSD-1250 Expanded Metal Slitting and Sizing Machine

  Advanced slitting machine for medium thickness expanded metal up to 2.00 mm

  Technical Specifications

  Material Cross-section	0.40 mm - 2.00 mm (Expanded Metal)
  Sheet Metal	DKP-Galvanized-Aluminum
  Power	380 V
  Roller Cutter (Quantity) Max	10 pieces + 10 pieces
  Roller Cutter (Material)	4140 - 58-60 HRC
  Roller Cutter Settings	Manual
  Sizing Blade and Cutter Settings	2379 (56-60 HRC)
  Automation	PLC (7' Touch Screen) - DELTA
  Motor (Slitting)	7.5 kW Motor - Inverter - Reducer - GAMAK
  Motor (Sizing)	5.5 kW Motor - Inverter - Reducer - GAMAK
  Packaging Dimensions (Slitting)	≈ 2650 mm x 1500 x 1800 mm
  Packaging Dimensions (Sizing)	≈ 2650 mm x 1125 x 1800 mm

• TSD-1500 Expanded Metal Slitting and Sizing Machine

  Heavy-duty slitting machine for thick expanded metal up to 3.00 mm

  Technical Specifications

  Material Cross-section	1.00 mm - 3.00 mm (Expanded Metal)
  Sheet Metal	DKP-Galvanized-Aluminum
  Power	380 V
  Roller Cutter (Quantity) Max	10 pieces + 10 pieces
  Roller Cutter (Material)	4140 - 58-60 HRC
  Roller Cutter Settings	Manual
  Sizing Blade and Cutter Settings	2379 (56-60 HRC)
  Automation	PLC (7' Touch Screen) - DELTA
  Motor (Slitting)	11 kW Motor - Inverter - Reducer - GAMAK
  Motor (Sizing)	5.5 kW Motor - Inverter - Reducer - GAMAK
  Packaging Dimensions (Slitting)	≈ 2650 mm x 1500 x 1800 mm
  Packaging Dimensions (Sizing)	≈ 2650 mm x 1125 x 1800 mm

• TSD-2000 Expanded Metal Slitting and Sizing Machine

  Industrial-grade slitting machine with 2000 mm width capacity for thick expanded metal

  Technical Specifications

  Material Cross-section	1.00 mm - 3.00 mm (Expanded Metal)
  Sheet Metal	DKP-Galvanized-Aluminum
  Power	380 V
  Roller Cutter (Quantity) Max	10 pieces + 10 pieces
  Roller Cutter (Material)	4140 - 58-60 HRC
  Roller Cutter Settings	Manual
  Sizing Blade and Cutter Settings	2379 (56-60 HRC)
  Automation	PLC (7' Touch Screen) - DELTA
  Motor (Slitting)	11 kW Motor - Inverter - Reducer - GAMAK
  Motor (Sizing)	7.5 kW Motor - Inverter - Reducer - GAMAK
  Packaging Dimensions (Slitting)	≈ 2650 mm x 1500 x 1800 mm
  Packaging Dimensions (Sizing)	≈ 2650 mm x 1125 x 1800 mm
