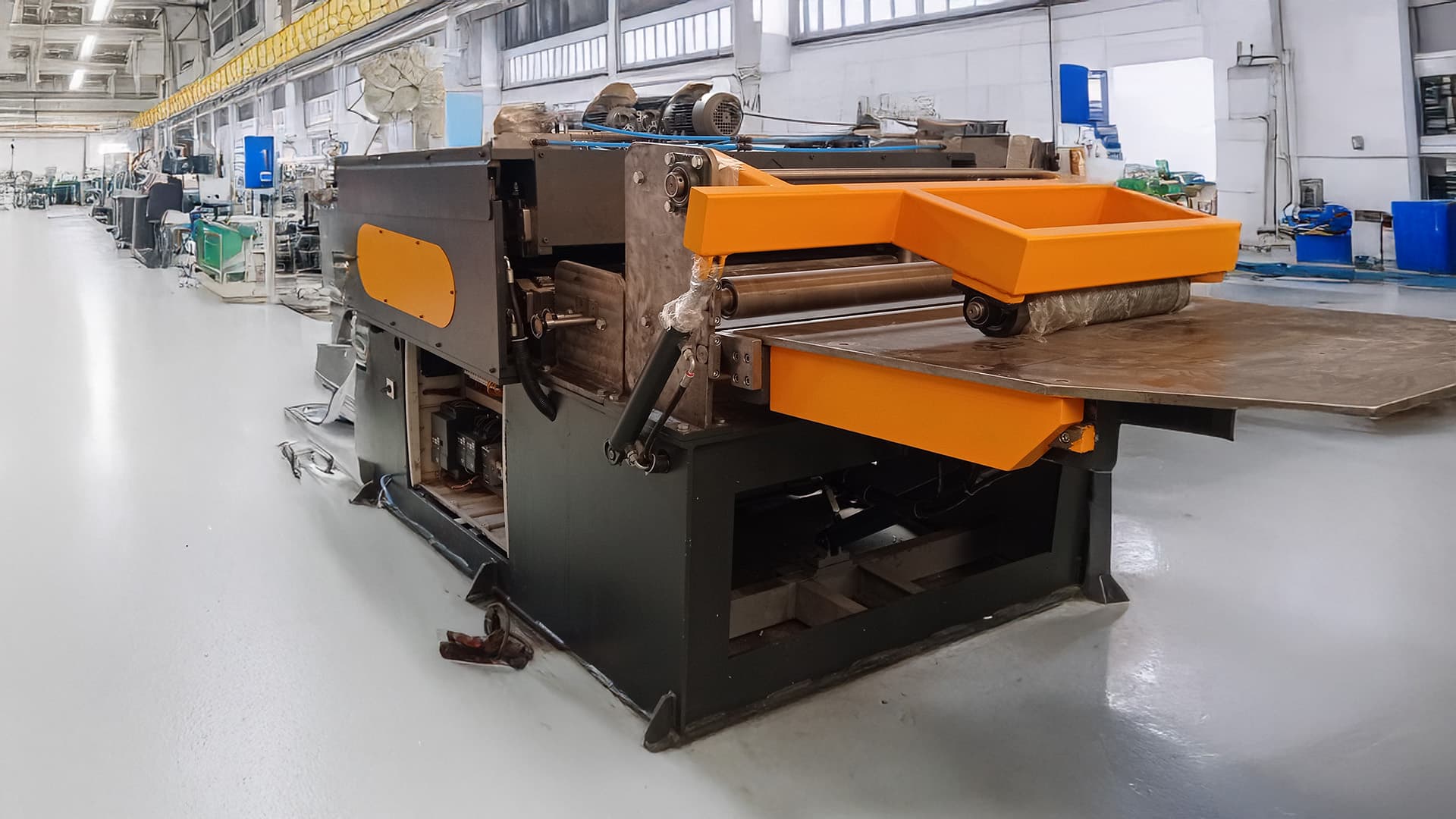

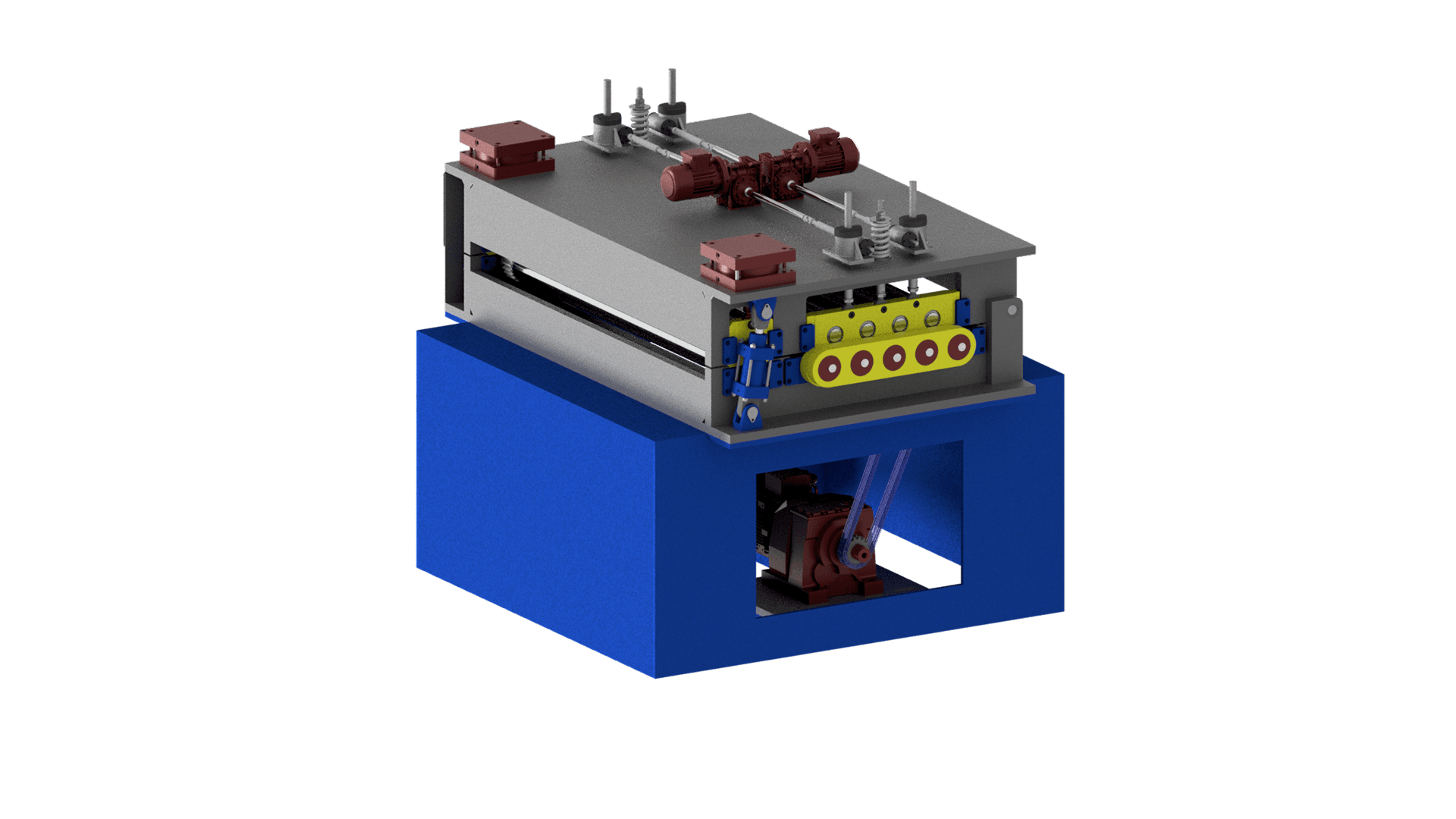

Sheet Metal Straightening (Pre-Straightening) Machines
High-performance pre-straightening systems specially designed for precise flattening of metal sheets before entering production processes
Available Models
TOD-75 Sheet Metal Straightening (Pre-Straightening) Machine
Compact pre-straightening machine for straightening thin sheets with 750 mm width
Key Features
- System specially designed for preparing raw metal sheets for production processes
- Capacity to process sheet metal to perfect flatness with a precisely operating cylinder array
- Metal sheet output flattened to an ideal level for subsequent production processes
- Ability to process DKP, HRP, aluminum, and stainless steel sheets
Product Description
Our machines are designed according to maximum efficiency, durability, OHS (occupational health and safety), and security values, adhering to engineering disciplines. The body of our machines is produced as steel construction and is welded by certified welders and subjected to welding tests. Raw materials are selected from certified products in accordance with Turkish and European standards. The necessary elements of our machines undergo surface hardening heat treatment and grinding processes in accordance with standards. Our sheet metal straightening machines provide perfect flatness and precision for preparing metal sheets for production processes, thus ensuring flawless results in subsequent production stages.
Model Specifications
TOD-75 Sheet Metal Straightening (Pre-Straightening) Machine
Compact pre-straightening machine for straightening thin sheets with 750 mm width
| Maximum Sheet Width | 750 mm |
| Min-Max Sheet Thickness | 0.20 mm - 0.80 mm (Flat Sheet) |
| Drive Type | Motor Reducer + Gear + Chain + Inverter |
| Straightening Cylinders | 11 Units (Ø 50 mm) |
| Drive Cylinders | 4 Units (Ø 125 mm) |
| Power | 380 V |
| Straightening Cylinders Adjustment | Manual |
| Motor | 3.0 kW |
| Start - Stop | Automatic Switch Control |
| Weight | ≈ 1500 kg |
| Packaging Dimensions | ≈ 1250 mm x 2300 mm x 1400 mm |
All Features
Related Products
Sheet Metal Straightening (Pre-Straightening) Machines - Product Description
High-performance pre-straightening systems specially designed for precise flattening of metal sheets before entering production processes
Our machines are designed according to maximum efficiency, durability, OHS (occupational health and safety), and security values, adhering to engineering disciplines. The body of our machines is produced as steel construction and is welded by certified welders and subjected to welding tests. Raw materials are selected from certified products in accordance with Turkish and European standards. The necessary elements of our machines undergo surface hardening heat treatment and grinding processes in accordance with standards. Our sheet metal straightening machines provide perfect flatness and precision for preparing metal sheets for production processes, thus ensuring flawless results in subsequent production stages.
Key Features
- System specially designed for preparing raw metal sheets for production processes
- Capacity to process sheet metal to perfect flatness with a precisely operating cylinder array
- Metal sheet output flattened to an ideal level for subsequent production processes
- Ability to process DKP, HRP, aluminum, and stainless steel sheets
- Quick adaptation to different thicknesses with manually adjustable straightening cylinders
- Optimal straightening results with precise pressure adjustment on both sides
- Efficient material feeding system thanks to powerful drive cylinders
- Safe operation capability with automatic switch control
- Durable steel body structure and maintenance-free design
Available Models
TOD-75 Sheet Metal Straightening (Pre-Straightening) Machine
Compact pre-straightening machine for straightening thin sheets with 750 mm width
Technical Specifications Maximum Sheet Width 750 mm Min-Max Sheet Thickness 0.20 mm - 0.80 mm (Flat Sheet) Drive Type Motor Reducer + Gear + Chain + Inverter Straightening Cylinders 11 Units (Ø 50 mm) Drive Cylinders 4 Units (Ø 125 mm) Power 380 V Straightening Cylinders Adjustment Manual Motor 3.0 kW Start - Stop Automatic Switch Control Weight ≈ 1500 kg Packaging Dimensions ≈ 1250 mm x 2300 mm x 1400 mm TOD-1000 Sheet Metal Straightening (Pre-Straightening) Machine
Medium-sized pre-straightening machine for thin sheets with 1000 mm width
Technical Specifications Maximum Sheet Width 1000 mm Min-Max Sheet Thickness 0.20 mm - 0.80 mm (Flat Sheet) Drive Type Motor Reducer + Gear + Chain + Inverter Straightening Cylinders 11 Units (Ø 63 mm) Drive Cylinders 4 Units (Ø 100 mm) Power 380 V Straightening Cylinders Adjustment Manual Motor 3.0 kW Start - Stop Automatic Switch Control Weight ≈ 1800 kg Packaging Dimensions ≈ 1500 mm x 2300 mm x 1400 mm TOD-1250 Sheet Metal Straightening (Pre-Straightening) Machine
Advanced pre-straightening machine for medium thickness sheets with 1250 mm width
Technical Specifications Maximum Sheet Width 1250 mm Min-Max Sheet Thickness 0.40 mm - 2.00 mm (Flat Sheet) Drive Type Motor Reducer + Gear + Chain + Inverter Straightening Cylinders 11 Units (Ø 63 mm) Drive Cylinders 4 Units (Ø 110 mm) Power 380 V Straightening Cylinders Adjustment Manual Motor 3.0 kW Start - Stop Automatic Switch Control Weight ≈ 2300 kg Packaging Dimensions ≈ 1700 mm x 2300 mm x 1400 mm TOD-1500 Sheet Metal Straightening (Pre-Straightening) Machine
Heavy-duty pre-straightening machine for thick sheets with 1500 mm width
Technical Specifications Maximum Sheet Width 1500 mm Min-Max Sheet Thickness 1.00 mm - 3.00 mm (Flat Sheet) Drive Type Motor Reducer + Gear + Chain + Inverter Straightening Cylinders 11 Units (Ø 63 mm) Drive Cylinders 4 Units (Ø 110 mm) Power 380 V Straightening Cylinders Adjustment Manual Motor 5.5 kW Start - Stop Automatic Switch Control Weight ≈ 3000 kg Packaging Dimensions ≈ 2100 mm x 2300 mm x 1600 mm TOD-2000 Sheet Metal Straightening (Pre-Straightening) Machine
Industrial-grade pre-straightening machine for thick sheets with 2000 mm width
Technical Specifications Maximum Sheet Width 2000 mm Min-Max Sheet Thickness 1.00 mm - 3.00 mm (Flat Sheet) Drive Type Motor Reducer + Gear + Chain + Inverter Straightening Cylinders 13 Units (Ø 90 mm) Drive Cylinders 4 Units (Ø 120 mm) Power 380 V Straightening Cylinders Adjustment Manual Motor 7.5 kW Start - Stop Automatic Switch Control Weight ≈ 4500 kg Packaging Dimensions ≈ 2300 mm x 2500 mm x 1800 mm
